Standard caps
Various standard caps made from PCR material are now also available. Please contact us for further information.
Canister caps 45
Canister cap 45 with snap ring
Article No.: 00-1649
Characteristics:
Material: HD-PE
Total height: 26.0 mm
Outer diameter: 58,0 mm
Thread: 45.4 mm
2.5-courses
Pitch: 4.0 mm
With tamper evident ring and sealing ring (EPE 300)
With TPE sealing ring possible
Packaging:
1.000 pcs./box
20.000 pcs./pallet
Minimum order quantity:
1 pallet = 20.000 pcs.
Canister cap 45 with attached ring with/without calendar clock
Article-no.: 00-2526/00-2527
Characteristics:
Material: HD-PE
Total height: 26.0 mm
Outer diameter: 57,7 mm
Thread: 45.4 mm
2.5-courses
Pitch: 4.0 mm
With tamper-evident ring and
sealing ring (EPE 300)
With TPE sealing ring possible
Packaging:
1.000 pcs./box
20.000 pcs./pallet
Minimum order quantity:
1 pallet = 20.000 pcs.
Canister cap 45 with venting
Article-no.: 00-2528
Characteristics:
Material: HD-PE
Total height: 26.0 mm
Outer diameter: 57,7 mm
Thread: 45.4 mm
2.5-courses
Pitch: 4.0 mm
With tamper evident ring,
sealing ring (EPE 300) and venting
Packaging:
1.000 pcs./box
20.000 pcs./pallet
Minimum order quantity:
1 pallet = 20.000 pcs.
Canister cap 45 light
Canister cap 45 ASH
Canister cap 45 child proof
Item No.: 00-2286
(Certified according to DIN ISO 8317)
Item characteristics:
Material: HD-PE
Total height: 30.2 mm (springy)
With tamper-evident ring and sealing ring
(EPE 300)
Packaging:
800 pieces/box
16,000 pieces/pallet
Minimum order quantity:
3 pallets = 48,000 pcs.
Canister cap 45 child proof with venting
Item No.: 00-2415
(Certified according to DIN ISO 8317)
Item characteristics:
Material: HD-PE
Total height: 29.2 mm (springy)
45.4 mm
2.5-start thread
With tamper-evident ring,
Degassing insert and sealing ring (EPE 300)
Packaging:
800 pieces/box
16,000 pieces/pallet
Minimum order quantity:
3 pallets = 48,000 pcs.
Canister caps 51
Canister cap 51
Item No.:00-1856
Item characteristics:
Material: HD-PE
Total height: 27.5 mm
Outer diameter: 65.0 mm
Thread dimension: 54.5 mm
Gradient: 5 mm
With tamper-evident ring and sealing ring (EPE 300)
With TPE insert option (00-2562)
Packaging:
700 pieces/box
14,000 pieces/pallet
Minimum order quantity:
3 pallets = 42,000 pieces
Canister cap 51 with venting
Item No.:00-1857
Item characteristics:
Material: HD-PE
Total height: 27.5 mm
Outer diameter: 65.0 mm
Thread dimension: 54.5 mm
Gradient: 5 mm
With tamper-evident ring and sealing ring (EPE 300)
With TPE insert option
Packaging:
700 pieces/box
14,000 pieces/pallet
Minimum order quantity:
3 pallets = 42,000 pieces
Canister cap 51 child proof
Item No.: 00-2275
(Certified according to DIN ISO 8317)
Item characteristics:
Material: HD-PE
Total height: 31.5 mm
Outer diameter: 66.8 mm
Thread dimension: 54.54 mm
Gradient: 5 mm
With tamper-evident ring and sealing ring (EPE 300)
Also available with degassing insert (00-2468)
Packaging:
500 pieces/box
10,000 pieces/pallet
Minimum order quantity:
3 pallets = 30,000 pieces
Canister caps 61
KV61 neutral
Item No.: 00-1836
Item characteristics:
Material: HD-PE
Total height: 29.5 mm
Outer diameter: 74.3 mm
Thread dimension: 60.5 mm
Gradient: 6 mm
With tamper-evident ring and sealing ring (EPE 300)
With TPE insert option
Packaging:
500 pieces/box
10,000 pieces/pallet
Minimum order quantity:
3 pallets = 30,000 pieces
KV61 with degassing
Item No.: 00-1837
Item characteristics:
Material: HD-PE
Total height: 29.5 mm
Outer diameter: 74.3 mm
Thread dimension: 60.5 mm
Gradient: 6 mm
With tamper-evident ring and sealing ring (EPE 300)
With TPE insert option
Packaging:
500 pieces/box
10,000 pieces/pallet
Minimum order quantity:
3 pallets = 30,000 pieces
KV61 KISI
Item No.: 00-2250
(Certified according to DIN ISO 8317)
Item characteristics:
Material: HD-PE
Total height: 33.4 mm
Outer diameter: 73.5 mm
Thread dimension: 60.5 mm
Gradient: 6 mm
With tamper-evident ring and sealing ring (EPE 300)
Also available with degassing insert (00-2469)
Packaging:
400 pieces/box
8,000 pieces/pallet
Minimum order quantity:
3 pallets = 24,000 pieces
Canister cap KV40 / KV42
Screw cap KV40 light with tamper-evident ring
Item No.: 00-1827
Item characteristics:
Material: PP Homo
Total height: 19.8 mm
Outer diameter: 48.5 mm
Thread dimension: 40.2 mm
Gradient: 4.0 mm
With tamper-evident ring
Colour: according to customer wishes
Packaging:
1.800 pcs./box
36.000 pcs./pallet
Minimum order quantity:
1 pallet = 36.000 pcs.

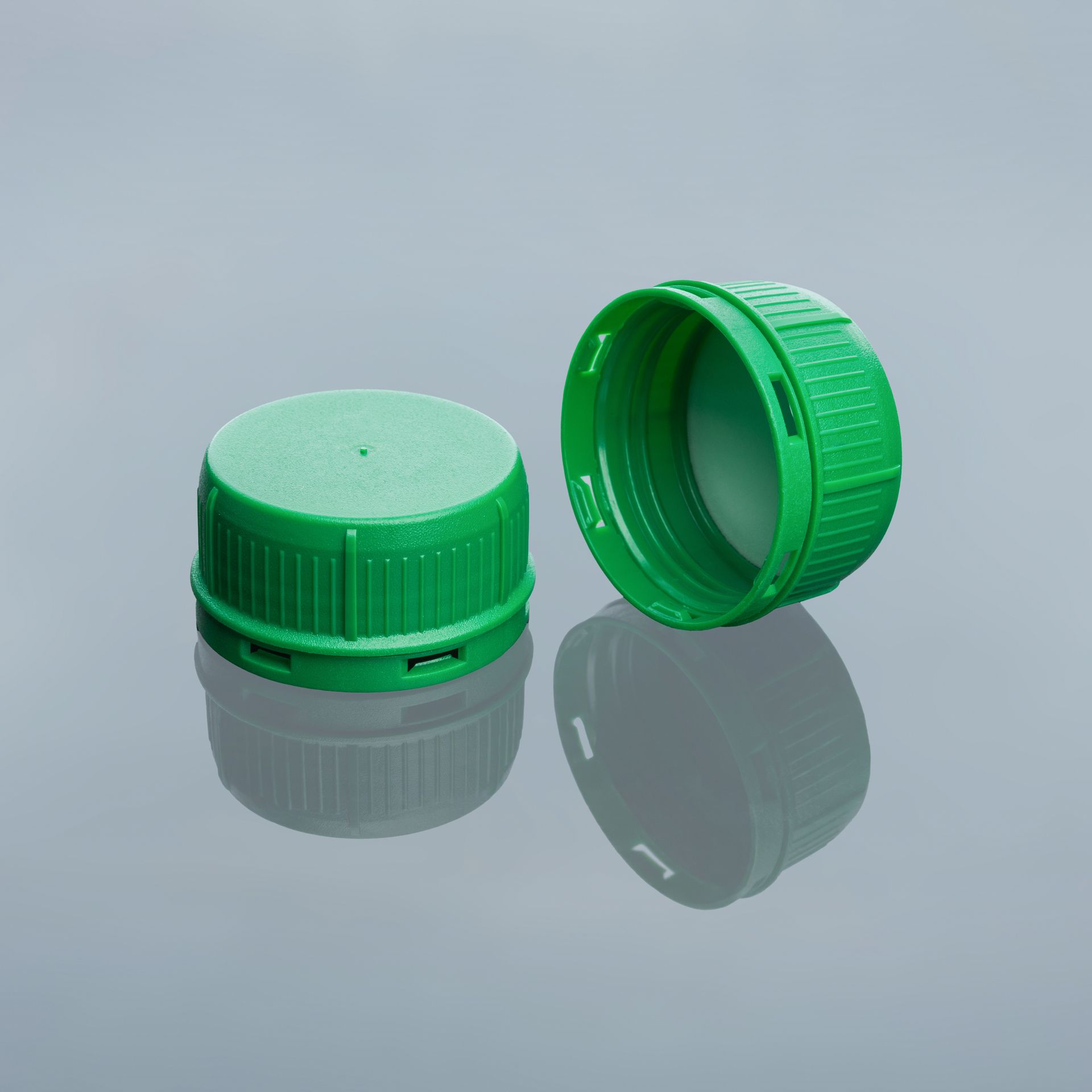

Screw cap KV42 with tamper-evident ring
Item No.: 00-2534
Item characteristics:
Material: PP Copo
Total height: 19.5 mm
Outer diameter: 49.1 mm
Thread dimension: 42.6 mm
Gradient: 4.0 mm
With tamper-evident ring
Colour: according to customer wishes
Packaging:
1.800 pcs./box
36.000 pcs./pallet
Minimum order quantity:
1 pallet = 36.000 pcs.
Canister key
Key for canister caps KV45 & KV61
Item No.: 00-2331
Item characteristics:
Material: PP regenerate
Colouring varies
Packaging:
200 pieces/box
Key for canister caps KV51 KV61
Item No.: 00-2330
Item characteristics:
Material: PP regenerate
Colouring varies
Packaging:
200 pieces/box
Key for canister caps KV45 & KV61 child proof
Item No.: 00-2332
(Certified according to DIN ISO 8317)
Item characteristics:
Material: PP regenerate
Colouring varies
Packaging:
200 pieces/box
Key for canister caps KV51 & KV61 child proof
Item No.: 00-2333
Item characteristics:
Material: PP regenerate
Colouring varies
Packaging:
200 pieces/box
Flip Tops DM35
Tube cap DM35 KLASSIK polished/matt
Item No.: 00-2510/00-2513
Item characteristics:
Material: PP
Height: 20.8 mm
Outer diameter: 34.0 mm
Possible spout openings
polished/matt:
1.5 mm (00-2511/00-2514)
3.0 mm (00-2510/00-2513)
5.0 mm (00-2512/00-2515)
Colour according to customer wishes
Packaging:
2.500 pcs./box
50.000 pcs./pallet
Minimum order quantity:
1 pallet = 50.000 pcs.
Flip Top DM35 SOFT polished/matt
Item No.: 00-2491/00-2494
Item characteristics:
Material: PP
Height: 20.8 mm
Outer diameter: 34.0 mm
Possible spout openings
polished/matt:
1.5 mm (00-2492/00-2495)
3.0 mm (00-2491/00-2494)
5.0 mm (00-2493/00-2496)
Colour according to customer wishes
Packaging:
2.500 pcs./box
50.000 pcs./pallet
Minimum order quantity:
1 pallet = 50.000 pcs.
Tube cap DM35 SUPER SOFT polished/matt
Item No.: 00-2905/00-2908
Item characteristics:
Material: PP
Height: 20.8 mm
Outer diameter: 34.0 mm
Possible spout openings
polished/matt:
1.5 mm (00-2904/00-2907)
3.0 mm (00-2905/00-2908)
5.0 mm (00-2906/00-2909)
Colour according to customer wishes
Packaging:
2.500 pcs./box
50.000 pcs./pallet
Minimum order quantity:
1 pallet = 50.000 pcs.
Flip Tops DM40
Flip Top DM40 CLASSIC polished/matt
Item No.: 00-2433/00-2444
Item characteristics:
Material: PP
Height: 21.7 mm
Outer diameter: 37.7 mm
Possible spout openings
polished/matt:
1.5 mm (00-2430/00-2442)
3.0 mm (00-2433/00-2444)
5.0 mm (00-2431/00-2443)
Colour according to customer wishes
Packaging:
2.200 pcs./box
44.000 pcs./pallet
Minimum order quantity:
1 pallet = 44.000 pcs.
Flip Top DM 40 SOFT polished/matt
Item No.: 00-2482/00-2499
Item characteristics:
Material: PP
Height: 21.7 mm
Outer diameter: 37.7 mm
Possible spout openings
polished/matt:
1.5 mm (00-2497/00-2500)
3.0 mm (00-2482/00-2499)
5.0 mm (00-2498/00-2501)
Colour according to customer wishes
Packaging:
2.200 pcs./box
44.000 pcs./pallet
Minimum order quantity:
1 pallet = 44.000 pcs.
Flip Top DM40 SUPER SOFT polished/matt
Item No.: 00-2552/00-2555
Item characteristics:
Material: PP
Height: 21.7 mm
Outer diameter: 37.7 mm
Possible spout openings
polished/matt:
1.5 mm (00-2551/00-2554)
3.0 mm (00-2552/00-2555)
4.0 mm (00-2557/00-2558)
5.0 mm (00-2553/00-2556)
Colour according to customer wishes
Packaging:
2.200 pcs./box
44.000 pcs./pallet
Minimum order quantity:
1 pallet = 44.000 pcs.
Flip Tops DM50
Flip Top DM50 CLASSIC polished/matt
Item No.: 00-2422/00-2421
Item characteristics:
Material: PP
Height: 21.7 mm
Outer diameter: 37.7 mm
Possible spout openings
polished/matt:
1.5 mm (00-2460/00-2459)
3.0 mm (00-2422/00-2421)
4.0 mm (00-2509)
5.0 mm (00-2455/00-2456)
Colour according to customer wishes
Packaging:
1.000 pcs./box
20.000 pcs./pallet
Minimum order quantity:
1 pallet = 20.000 pcs.
Flip Top DM50 SOFT polished/matt
Item No.: 00-2590/00-2593
Item characteristics:
Material: PP
Height: 24.7 mm
Outer diameter: 47.7 mm
Possible spout openings
polished/matt:
1.5 mm (00-2591/00-2594)
3.0 mm (00-2590/00-2593)
5.0 mm (00-2592/00-2595)
Colour according to customer wishes
Packaging:
1.000 pcs./box
20.000 pcs./pallet
Minimum order quantity:
1 pallet = 20.000 pcs
Flip Top DM50 SUPER SOFT polished/matt
Item No.: 00-2590/00-2593
Item characteristics:
Material: PP
Height: 24.7 mm
Outer diameter: 47.7 mm
Possible spout openings
polished/matt:
1.5 mm (00-2591/00-2594)
3.0 mm (00-2590/00-2593)
5.0 mm (00-2592/00-2595)
Colour according to customer wishes
Packaging:
1.000 pcs./box
20.000 pcs./pallet
Minimum order quantity:
1 pallet = 20.000 pcs.
tube shoulder for flip tops
Tubeshoulder DM35
Item No.: 00-2900
Item characteristics:
Material: HD-PE
Height: 18,1 mm
Outer diameter: 34,1 mm
Snap in height: 6,9 mm
Orifice: 10,0 mm
Colour according to customer wishes
Packaging:
4.500 pcs./box
90.000 pcs./pallet
Minimum order quantity:
1 pallet = 90.000 pcs.
Tubeshoulder DM40
Item No.: 00-2599
Item characteristics:
Material: HD-PE
Height: 18,0 mm
Outer diameter: 39,1 mm
Snap in height: 6,9 mm
Orifice: 10,0 mm
Colour according to customer wishes
Packaging:
4.500 pcs./box
90.000 pcs./pallet
Minimum order quantity:
1 pallet = 90.000 pcs.
Tubeshoulder DM50
Item No.: 00-2589
Item characteristics:
Material: HD-PE
Height: 22,9 mm
Outer diameter: 49,2 mm
Snap in height: 7,3 mm
Orifice: 10,0 mm
Colour according to customer wishes
Packaging:
2.500 pcs./box
50.000 pcs./pallet
Minimum order quantity:
1 pallet = 50.000 pcs.
Flip Tops slim
Flip Top DM35 Slim
Flip Top DM40 Slim
Flip Top DM50 Slim
Tube Shoulder slim
Tubeshoulder DM35 Slim
Item No.: 00-3238
Item characteristics:
Material: HD-PE
Height: 13,0 mm
Outer diameter: 34,1 mm
Snap in height: 6,5 mm
Orifice: 10,0 mm
Colour according to customer wishes
Packaging:
6.000 pcs./box
120.000 pcs./pallet
Minimum order quantity:
1 pallet = 120.000 pcs.
Tubeshoulder DM50 Slim
Item No.: 00-3234
Item characteristics:
Material: HD-PE
Height: 15,0 mm
Outer diameter: 49,1 mm
Snap in height: 6,5 mm
Orifice: 10,0 mm
Colour according to customer wishes
Packaging:
2.800 pcs./box
56.000 pcs./pallet
Minimum order quantity:
1 pallet = 56.000 pcs.
Screwed tube caps DM35
Screw cap DM35 Fractal smooth / Fractal fluted
Item No.: 24-1660/00-1750
Item characteristics:
Material: PP
Height: 17.4 mm
Colour according to customer wishes
Packaging:
2.000 pcs./box
32.000 pcs./pallet
Minimum order quantity:
1 pallet = 32.000 pcs.
Screw cap DM35 Fractal matt
Item No.: 00-2467
Item characteristics:
Material: PP
Height: 17.4 mm
Colour according to customer wishes
Packaging:
2.000 pcs./box
32.000 pcs./pallet
Minimum order quantity:
1 pallet = 32.000 pcs.
Screw cap DM35 smooth/ribbed
Item No.: 00-2521/00-2520
Item characteristics:
Material: PP
Height: 21,3 mm
Colour according to customer wishes
Packaging:
2.000 pcs./box
40.000 pcs./pallet
Minimum order quantity:
1 pallet = 40.000 pcs.
Screw cap DM35 Fractal high
Item No.: 00-2454
Item characteristics:
Material: PP
Height: 24,0 mm
Colour according to customer wishes
Packaging:
2.000 pcs./box
40.000 pcs./pallet
Minimum order quantity:
1 pallet = 40.000 pcs.
Screw cap CAP40 M15 ribbed
Item No.: 00-2935
Item characteristics:
Material: HD-PE/LD-PE
Height: 27,6 mm
Colour according to customer wishes
Packaging:
5.000 pcs./box
100.000 pcs./pallet
Minimum order quantity:
1 pallet = 100.000 pcs.
Screw cap CAPSU 40 S13 ribbed
Item No.: 00-2585
Item characteristics:
Material: PP-Homo
Height: 21,6 mm
Colour according to customer wishes
Packaging:
1.800 pcs./box
21.600 pcs./pallet
Minimum order quantity:
1 pallet = 21.600 pcs.
Screw cap for cannula ribbed/smooth
Item No.: 00-2579/00-2580
Item characteristics:
Material: PP-Homo
Height: 24,0 mm
Colour according to customer wishes
Packaging:
4.000 pcs./box
80.000 pcs./pallet
Minimum order quantity:
1 pallet = 80.000 pcs.
Tube shoulder DM35
Tube shoulder DM35 for screw cap DM35
Item No.: 00-2489
Item characteristics:
Material: HD-PE
Total height: 18.1 mm
Outer diameter: 34.35 mm
Thread dimension: 12.5 mm
Gradient: 6.35 mm
Opening: 7.3 mm
Colour according to customer wishes
Packaging:
5.000 pcs./box
100.000 pcs./pallet
Minimum order quantity:
1 pallet = 100.000 pcs.
Hinged lid caps ND28
Hinged lid ND28 straight spout pitch 3.0 mm
Item No.: 000-2473
Item characteristics:
Material: PP
Height: 22.0 mm
Outer diameter: 31.7 mm
Thread dimension: 28.25 mm
Sealing lip: 22.35 mm
Gradient: 3.0 mm
Straight spout opening
Colour according to customer wishes
Packaging:
3,200 pieces/box
51,200 pieces/pallet
Minimum order quantity:
1 pallet = 51,200 pieces
Hinged lid ND28 angled spout
Item No.: 00-2525
Item characteristics:
Material: PP
Height: 22.0 mm
Outer diameter: 31.7 mm
Thread dimension: 28.25 mm
Sealing lip: 22.35 mm
Gradient: 3.0 mm
Inclined pouring spout
With riser pipe option
Colour according to customer wishes
Packaging:
3,200 pieces/box
51,200 pieces/pallet
Minimum order quantity:
1 pallet = 51,200 pieces
Hinged lid ND28 long
Item No.: 00-1908
Item characteristics:
Material: PP
Height: 28.5 mm
Outer diameter: 31.2 mm
Thread dimension: 28.7 mm
Sealing lip:21.8 mm
Gradient: 4.23 mm
Pouring spout trumpet
Threads: 28/410
Colour according to customer wishes
Packaging:
2,500 pieces/box
50,000 pieces/pallet
Minimum order quantity:
1 pallet = 50,000 pieces
Hinged lid / FOOD caps
Hinged lid cap for PCO 28
Item No.: 00-2452
Item characteristics:
Material: PE
Height: 21.3 mm
Outer diameter: 30.5 mm
Threads: PCO 28
Pitch: 3.175 mm
with tamper-evident, big orifice
Colour according to customer wishes
Packaging:
3.000 pcs./box
60.000 pcs./pallet
Minimum order quantity:
1 pallet = 60.000 pcs.
Hinged lid cap for vinegar
Item No.: 00-2544
Item characteristics:
Material: LD-PE
Height: 11.4 mm
Outer diameter: 28.6 mm
Thread dimension: 24.4 mm
With tamper-evidence safety pack
Colour according to customer wishes
Packaging:
4.000 pcs./box
128.000 pcs./pallet
Minimum order quantity:
1 pallet = 128.000 pcs.
Screw caps

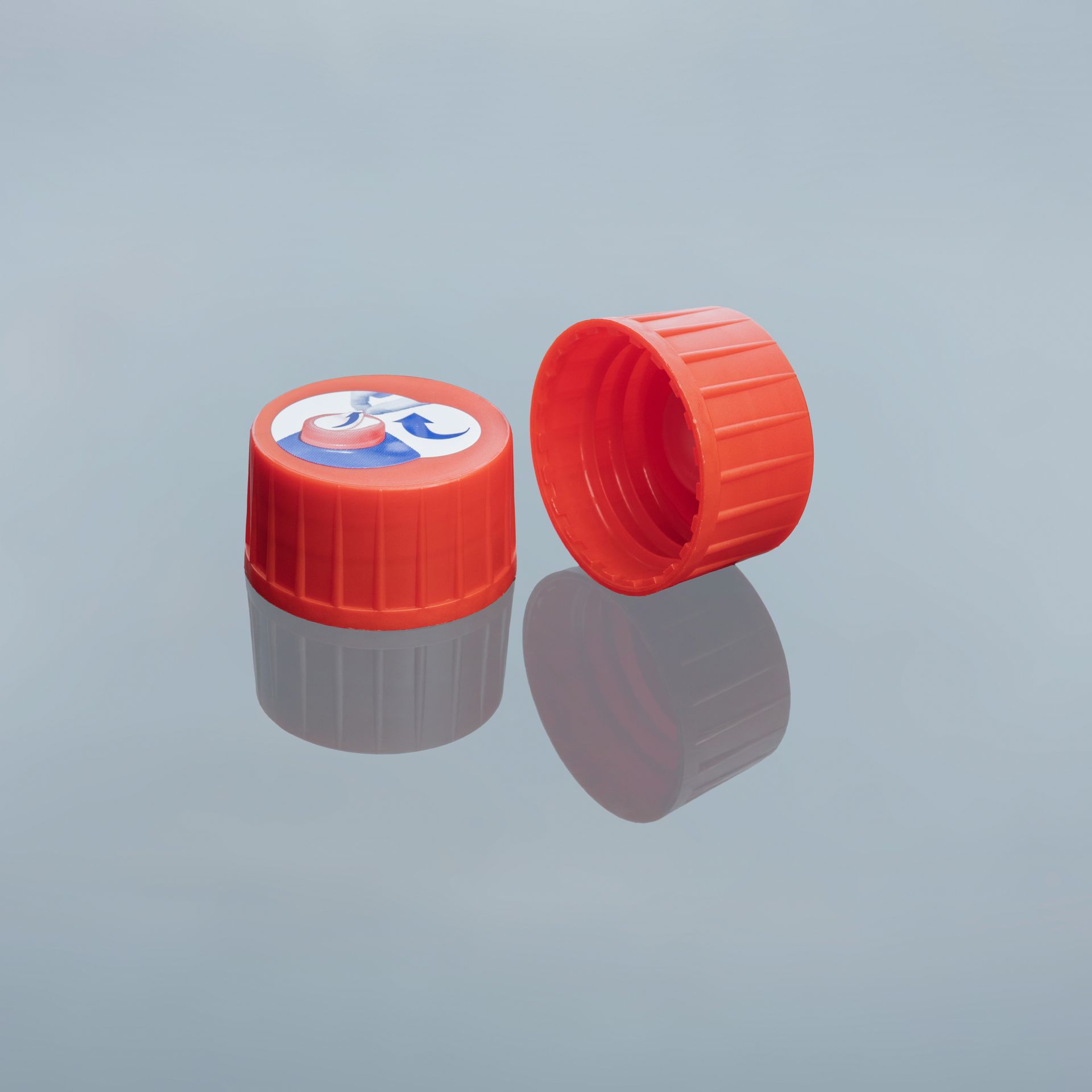

Screw cap DM 28 with liquid wax and lable
Item No.: 00-2597
Item characteristics:
Material: PP
Height: 17,5 mm
Outer diameter: 32,2 mm
Thread: 28,9 mm
Pitch: 4,23 mm
In standard colours: red or blue possible
Attention! Maximum storage temperature 40°C
Packaging:
3.500 pcs./box
70.000 pcs./pallet
Minimum order quantity:
1 pallet = 70.000 pcs.
Screw cap W28
Item No.: 00-2577
Item characteristics:
Material: PP
Height: 17,5 mm
Outer diameter: 32,2 mm
Thread: 27,6 mm
Pitch: 4,23 mm
Colour according to customer request
Packaging:
3.500 pcs./box
70.000 pcs./pallet
Minimum order quantity:
1 pallet = 70.000 pcs.
Screw cap DM28 SG 28x3 flat
Item No.: 00-1752
Item characteristics:
Material: PP
Height: 12,5 mm
Outer diameter: 31,0 mm
Thread: 28,5 mm
Pitch: 3,0 mm
Colour according to customer request
Packaging:
6.000 pcs./box
96.000 pcs./pallet
Minimum order quantity:
1 pallet = 96.000 pcs.
Screw caps DM 28
Mini screw cap RD 16x2.5
Item No.: 00-2508
Item characteristics:
Material: PP
Total height: 15.5 mm
Outer diameter: 19.0 mm
Thread: 16.0 mm
Pitch: 2.5 mm
Colour according to customer wishes
Packaging:
11.000 pcs./box
176.000 pcs./pallet
Minimum order quantity:
1 pallet = 176.000 pcs.
Screw cap RD 18x3 with spout insert
Item No.: 00-2041
Item characteristics:
Material: PP/LD-PE
Total height: 29.3 mm
Outer diameter: 21.2 mm
Thread: 18.2 mm
Pitch: 3.0 mm
Colour according to customer wishes
Packaging:
4,000 pcs./box
128.000 pcs./pallet
Minimum order quantity:
1 pallet = 128.000 pcs.
Screw cap KISI M15 with drip insert
Item No.: 00-1956
Item characteristics:
Material: HD-PE/LD-PE
Total height: 27.6 mm
Outer diameter: 19.6 mm
Thread: 14.4 mm
Colour according to customer wishes
Packaging:
5.000 pcs./box
120.000 pcs./pallet
Minimum order quantity:
1 pallet = 120.000 pcs.
Measuring cup caps
Measuring cap 30 ml
Item no.: 00-3049
Item characteristics:
Material: PP
Height: 41.0 mm
Outer diameter: 40,6 mm
Shaft diameter: 39,0 mm
Sealing lip: 33,5
Pitch: 9.0 mm
Colour according to customer wishes
Packaging:
1.000 pcs./box
20.000 pcs./pallet
Minimum order quantity:
1 pallet = 20.000 pcs
Measuring cap 38 ml with scale
Item No.: 08-2282
Item characteristics:
Material: PP
Height: 51.0 mm
Outer diameter: 45.1 mm
Thread: 42.9 mm
Sealing lip: 36.3 + 0.2 mm
Pitch: 4.0 mm
Colour according to customer wishes
Packaging:
800 pcs./box
16.000 pcs./pallet
Minimum order quantity:
1 pallet = 16.000 pcs
Measuring cup caps 20 ml
Measuring cap 20 ml
Item No.: 00-2502
Item characteristics:
Material: PP
Height: 36.8 mm
Outer diameter: 40.0 mm
Thread: 35.4 mm
2-start thread
Pitch: 7.3 mm
with tamper-evident ring
Colour according to customer wishes
Packaging:
1.500 pcs./box
30.000 pcs./pallet
Minimum order quantity:
1 pallet = 30.000 pcs
Measuring cap 20 ml with spout
Item No.: 00-2916
Item characteristics:
Material: PP (measuring cup) / HDPE (spout)
Height (total): 48.4 mm
Outer diameter (spout): 47.2 mm
Thread (spout): 43.0 mm
Pitch (spout): 4.0 mm
Colour according to customer wishes
Packaging:
800 pcs./box
16.000 pcs./pallet
Minimum order quantity:
1 pallet = 16.000 pcs
